Hydraulic 3-roll plate rolling machine WM11 6×3000 mm
Hydraulic 3-roll plate rolling machine WM11 6×3000 mm

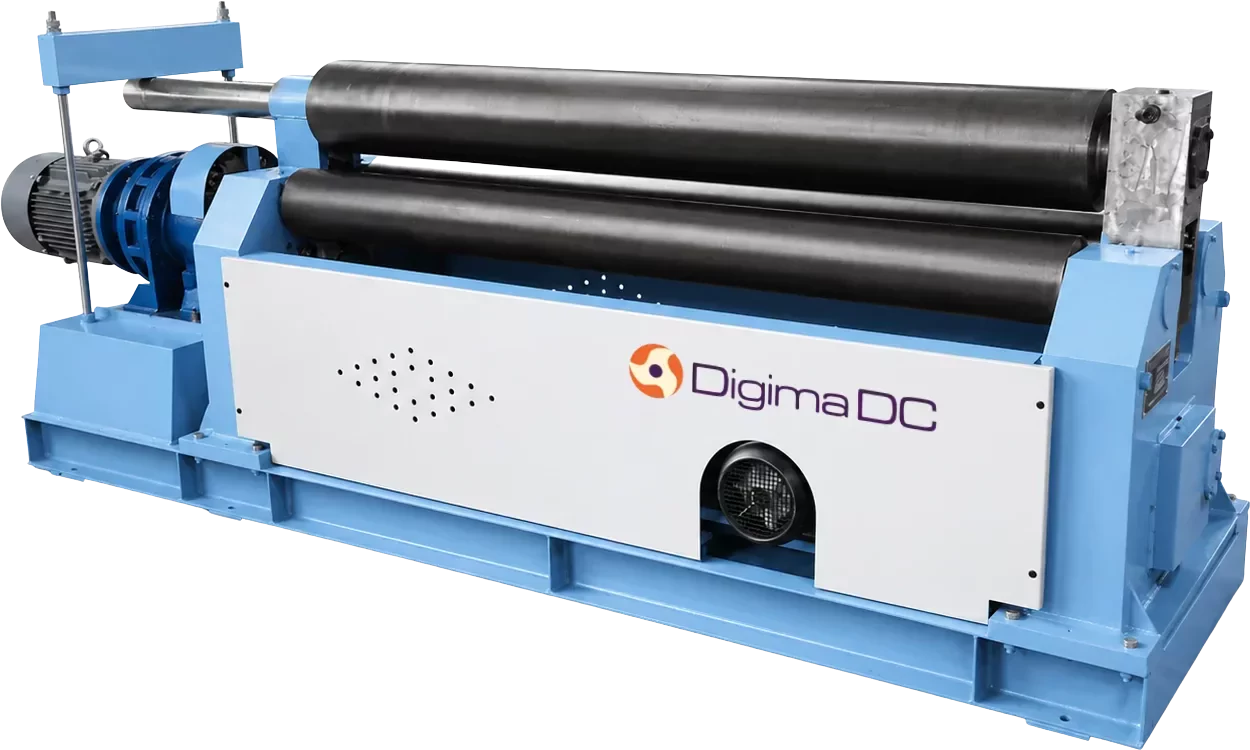

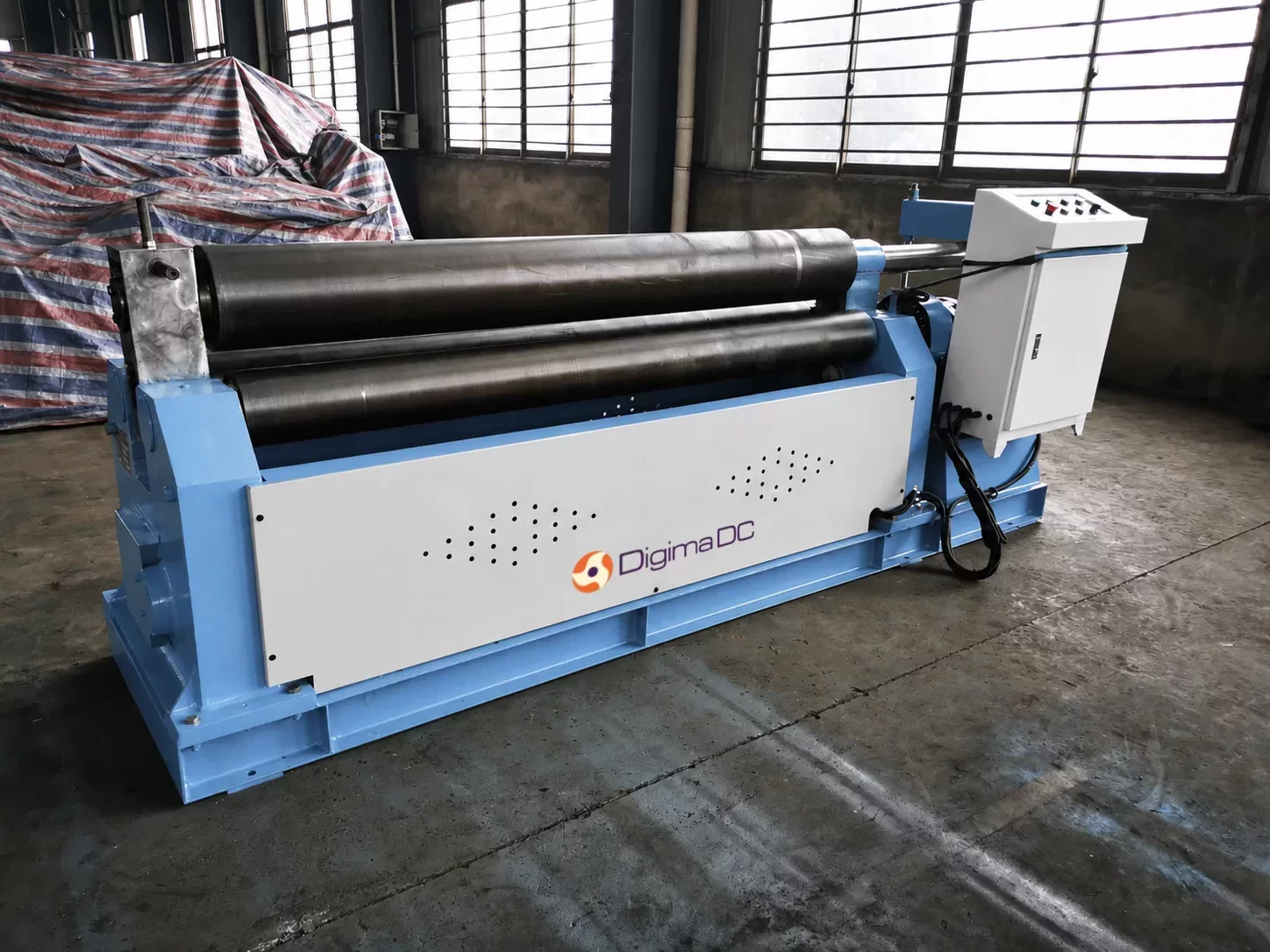

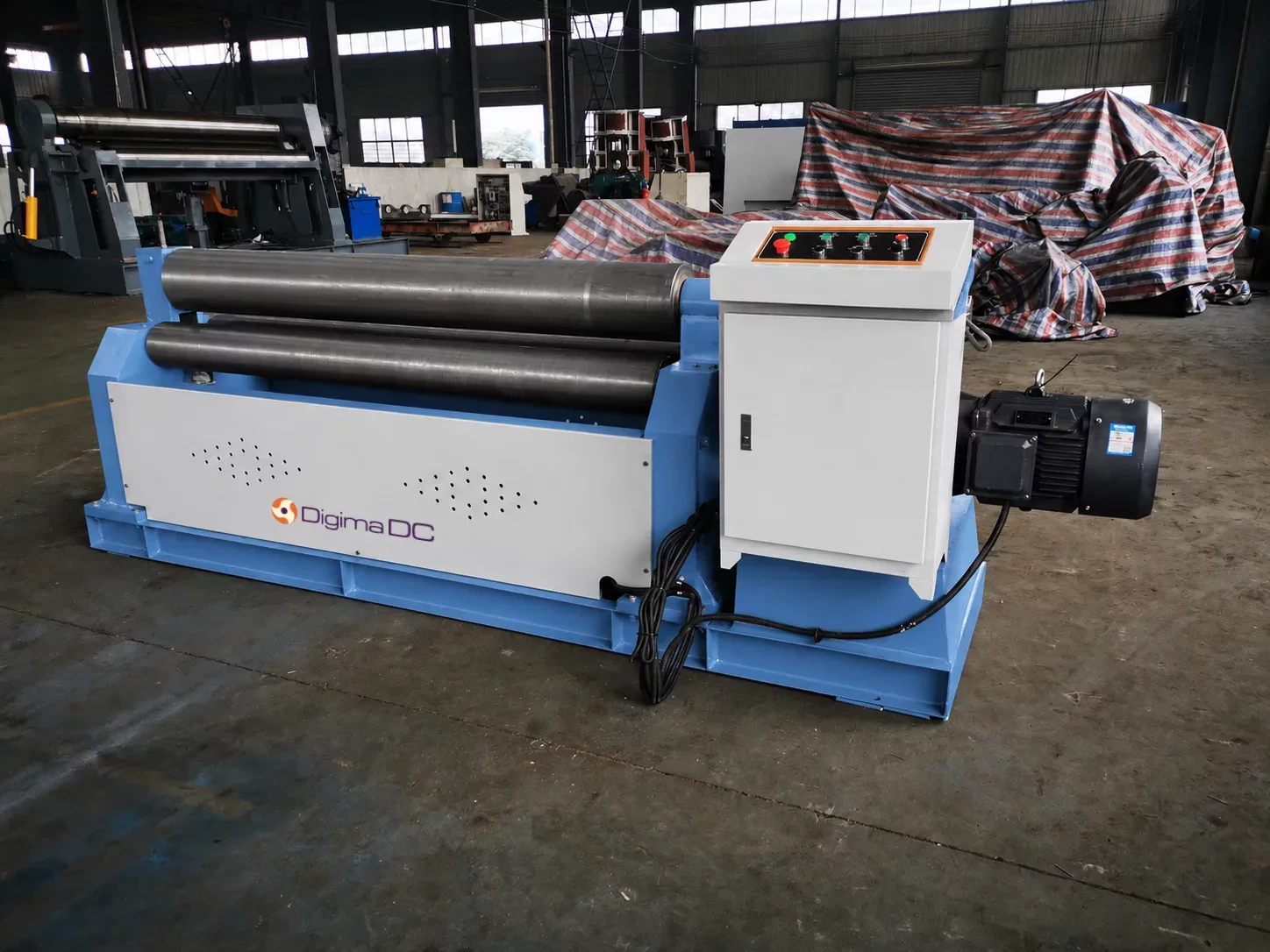

WM11 6×3000 mm is a hydraulic 3-roll plate rolling machine designed for precise bending and rolling of sheet metal up to 6 mm and with a working width of 3000 mm.
It is an excellent solution for workshops and plants that need to process longer sheets, but do not require a machine for very thick plate. The three-roll system enables a controlled curve, cylinder or structural segment.
The machine is well suited for manufacturing enclosures, guards, ventilation components, pipe sections, tank shells and light to medium steel structures.
Hydraulic drive, a 3-roll working system and a 3000 mm width make repeatable sheet-metal work convenient and efficient.
Why choose the WM11 hydraulic rolling machine?
3-roll system
Even sheet guidance and stable forming of cylinders, pipes and curves.
Hydraulic drive
Smooth operation, good process control and convenient handling when rolling sheets.
For plate up to 6 mm
Machine designed for rolling sheet metal up to 6 mm thick.
3000 mm width
The long working width allows processing large sheet-metal plates.
Various radii
Roll adjustment enables different bending radii to be achieved.
Workshop and production work
Robust construction performs well in workshops, metalworking shops and production facilities.
How does a hydraulic 3-roll plate rolling machine work?
In a 3-roll machine, the sheet passes between the rolls, which gradually form it into the required shape. The two lower rolls guide the sheet, while the upper roll provides pressure and forms the radius.
Material support
The lower rolls stabilise the sheet and keep it on the correct path as it passes through the machine.
Hydraulic forming
The hydraulic system supports smooth operation and enables the controlled formation of the required radius in the sheet.
Repeatable rolling
The material is passed through the rolls until the required curve, cylinder or structural element is achieved.
Different types and variants of rolling machines available
Selecting a rolling machine depends on plate thickness, working width, production type and the required accuracy. The range includes versions for thinner and thicker plate, with different working lengths and operating configurations.
3-roll rolling machines
A versatile solution for rolling sheet metal into cylinders, pipes, curves and segments.
4-roll rolling machines
Chosen for more demanding applications where automation and repeatability matter.
Different working lengths
Machines can be selected for the sheet width: from workshop models to versions for large formats.
Different bending ranges
Models are available for thinner plate as well as heavier-duty versions for thicker material.
What can you use a hydraulic rolling machine for?
The WM11 6×3000 mm hydraulic rolling machine is ideal wherever controlled rolling of long sheet-metal plates and the forming of components with a repeatable radius are required.
Production of enclosures and guards
- Cylindrical and semi-cylindrical enclosures.
- Technical guards and enclosure components.
- Components requiring a repeatable radius.
Metalworking workshops
- Rolling steel sheets.
- Manufacturing curved segments and pipes.
- One-off work and short production runs.
Light and medium structures
- Ventilation components and ducts.
- Tank shells made from thinner sheet metal.
- Production for service departments and maintenance operations.
